ELEVATING STANDARDS IN VERTICAL MOBILITY
Hospital Bed Elevator
Transform every ride into a breathtaking experience with our premium panoramic elevators. Featuring crystal-clear glass walls and elegant designs, our lifts offer a stunning 360-degree view, turning vertical travel into a visual masterpiece for your guests.
Get A Quotation

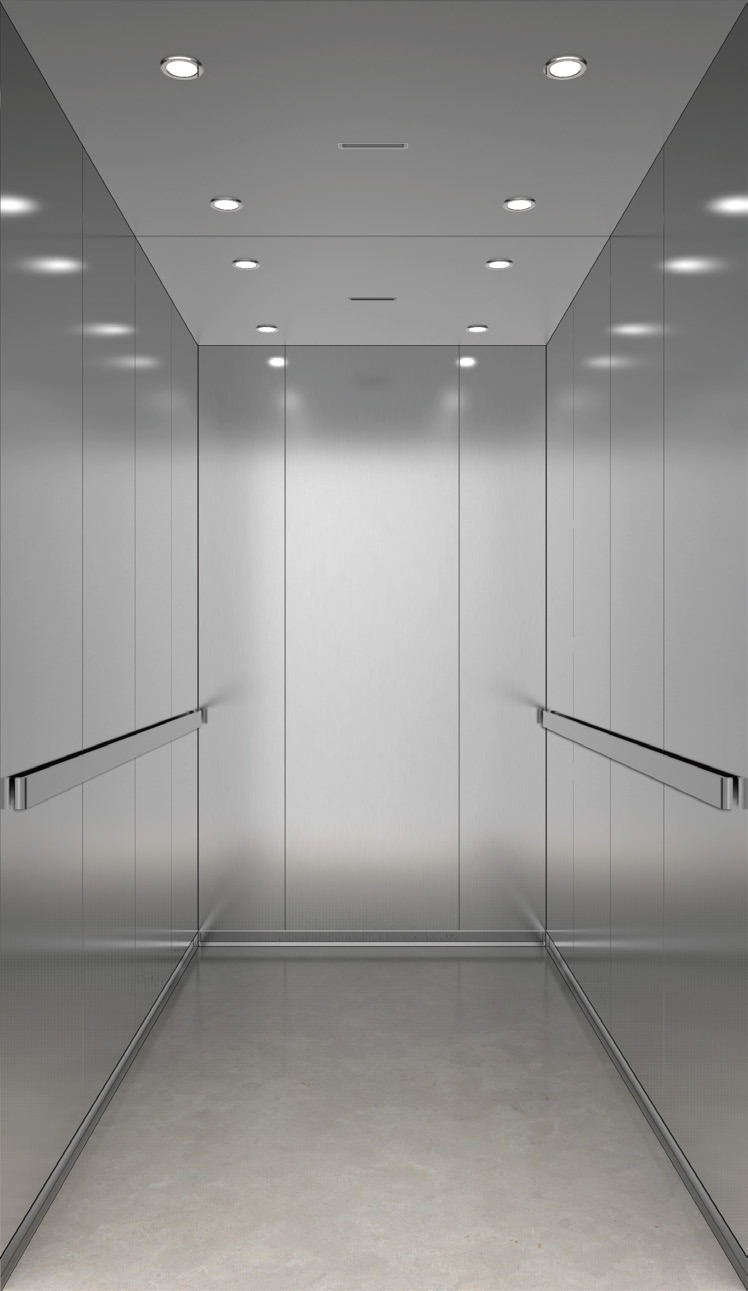

Cabin Details
GEC-B01
- Ceiling: Hairline stairless Steel LED energy saving light
- Ventilation: Axial fan
- Car wall: Hairline stainless steel
- Handrail: Double flat stainless steel
- Front: PVC Floorboard

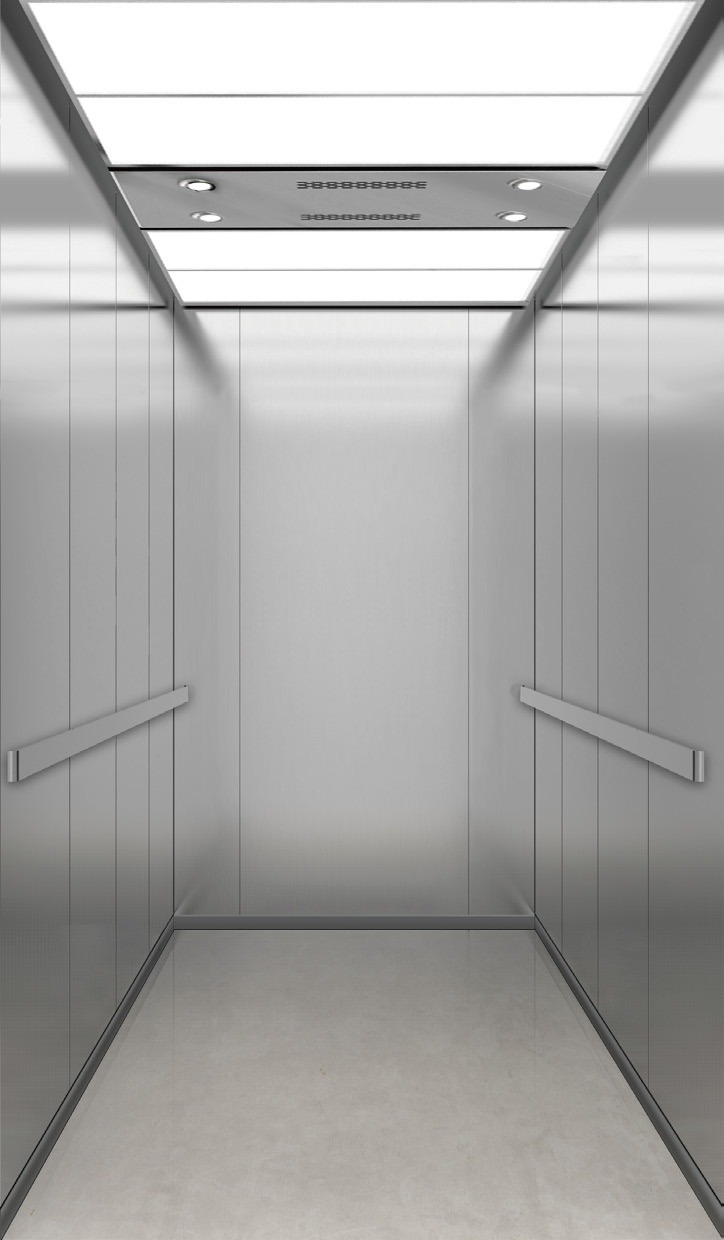

Cabin Details
GEC-B02
- Ceiling: Painted Steel plate, LED energy saving light
- Ventilation: Axial fan
- Car wall: Hairline stainless steel
- Handrail: Stainless steel Tube
- Front: PVC Floorboard
Cabin Details
GEC-B04
- Ceiling: GEC-J117 steel plate coating +LED downlight
- Rear wall: Hairline stainless steel
- Side wall: Hairline stainless steel
- Floor: GEC-DB207 PVC
- Car door: Hairline stainless steel
- Front Wall: Hairline stainless steel
- Handrail: GEC-FS03 hairline stainless steel
Cabin Details
GEC-B05
- Ceiling: GEC-J226 Aluminum alloy frame + middle hairline stainless steel + acrylic +LED light
- Rear wall: Hairline stainless steel
- Side wall: Hairline stainless steel
- Floor: GEC-DB207 PVC
- Car door: Hairline stainless steel
- Front Wall: Hairline stainless steel
- Handrail: GEC-FS03 hairline stainless steel
Cabin Details
GEC-13A
Cabin Details
GEC-06
- Ceiling: CO-037 Middle apple sand stainless steel LED light strip hidden in milky acrylic board around
- Cabin Wall: Apple sand + anti fingerprint Mirror stainless steel + anti fingerprint Matte white sprayed steel plate
- Floor: F020, black and white
Technical Perimeter For Hospital Bed Elevator
| Model | Load KG |
Passngr NO. |
Speed m/s |
Car Spec. CWxCD |
Door Opening JJxOPH |
Well Size HWxHD |
Machine Room MRWxMRD |
Pit Depth Pit |
Top Height OH |
Power | Acting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | R2 | R3 | P1 | P2 | |||||||||||
| GEC1600/1.0 | 1600 | 21 | 1.0 | 1400x2400 | 1100x2100 | 2500x2950 | 2500x2950 | 1400 | 4500 | 11 | 73600 | 47600 | 9600 | 128000 | 96000 |
| GEC1600/1.5 | 1.5 | 1500 | 4600 | 16.6 | |||||||||||
| GEC1600/1.75 | 1.75 | 1600 | 4700 | 19.4 | |||||||||||
Hospital Elevator Customization Options
- 1. Traction Systems: Choose from geared or gearless traction machines based on your performance and efficiency requirements.
- 2. Product Options: Available in semi-imported, fully imported, or complete branded configurations to match your project needs.
- 3. Cabin Designs: Personalize your elevator with fancy, full-glass, or panoramic cabin styles to enhance visual appeal.
- 4. Door Configurations: Select from automatic or swing doors, with options for decorative finishes and glass panels for an elegant entrance.
- 5. Emergency Rescue Device (ERD): An essential safety feature to ensure passenger security during power failures.
- 6. Machine Room-Less (MRL) Installation: A modern, space-saving solution designed for efficient elevator operation.
Please Note:
- According to EN81 standards, the standard weight per person is considered to be 75 kg.
- For geared machines operating at 60 meters per minute, power consumption is 1 kW per 100 kg of rated capacity.
- For gearless machines operating at 60 meters per minute, power consumption is 0.66 kW per 100 kg of rated capacity.
- Electrical power requirements: 380–440V, 50Hz.
